Urban 76mm Double Hung Window
About Urban 76mm Double Hung Window
The Urban 76mm Double Hung Window incorporates the features and functionality of the 53mm Urban double hung window into a commercial grade version.
With a sash weight of up to 21kgs per panel, the 76mm double hung window can be coupled with the full range of Urban windows and doors by installing a variety of adaptors.
Designed and engineered in Australia for Australian climatic conditions, it is available in a range of standard configurations.
The entire Urban range has been tested and exceeds Australian Standard AS2047.
Urban 76mm Double Hung Window Design Features:
-
Accepts glass thickness from 4mm to 10.38mm single glazed glass and 16 & 20mm double glazed glass
-
Flyscreen grove on top and bottom of window
-
Sash width up to 1200mm
-
Can be coupled to the full KlassicView ragne of window and doors with the use of a variety of adaptors
-
Sash weight up to 21Kgs per panel
-
Plus can be attached to the Fixed window system to have lowlights or highlights or side lights
-
Slide in flyscreens with no need of any clips
WERS Rating:
Tested to AS2047:

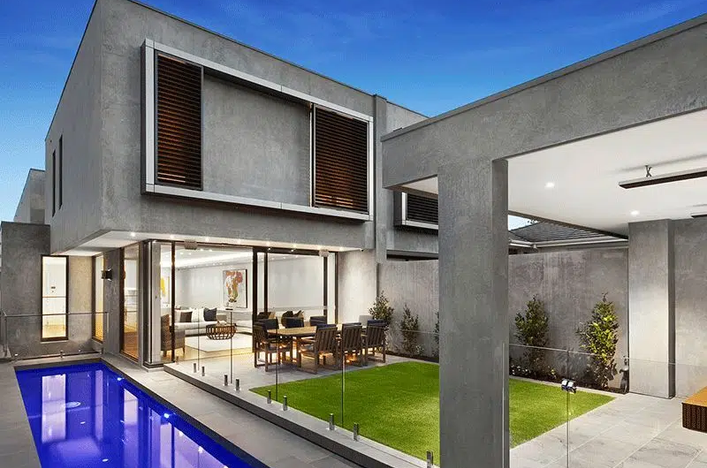

Product Gallery
Specificaitions
Standard Configurations
System | Maximum weight per panel | Maximum height per panel | Maxiumim Width per panel | Glass Thickness | Test Report No. | Water Rating (Pa) | Structural (Pa) | Ultimate (Pa) |
|---|---|---|---|---|---|---|---|---|
Urban 76mm Double Hung Window | 20kgs | 2400mm | 1200mm | singale glazed=10.38mm | AZT0148.13 | 1800 | 1800 | 2800 |
double glazed=20mm |
